Customized Plastic single wall corrugated pipe mold block manufacturer

Our main business
01, Customized processing of plastic corrugated  pipe mold
Our company has professional mold designers and mold processing equipment. Various corrugated forming modules, heterosexual bellows modules, and corrugated  mold lettering can be processed according to customer requirements. The module uses special die steel,which has high hardness and strong wear resistance.

02, single screw extruder modification
The single-screw extruder of the melt-blown cloth equipment can be converted into a corrugated pipe production equipment with our corrugated pipe forming machine. We will provide a free modification project report and send professional engineers to the
customer’s factory to guide the installation and commissioning, and provide worry-free after-sales .

03. Domestic trade and export business of the whole machine

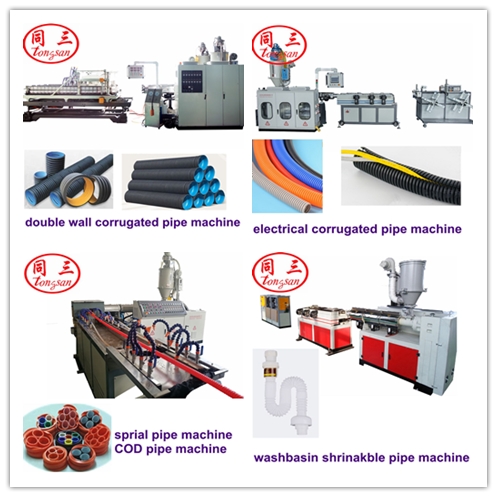

Our company has single-wall and double-wall PP, PE, EVA, PVC corrugated pipe production equipment of various specifications, all components adopt export configuration, Siemens motors, ABB frequency converters, Omron temperature controllers, and engineers can be arranged for debugging abroad.

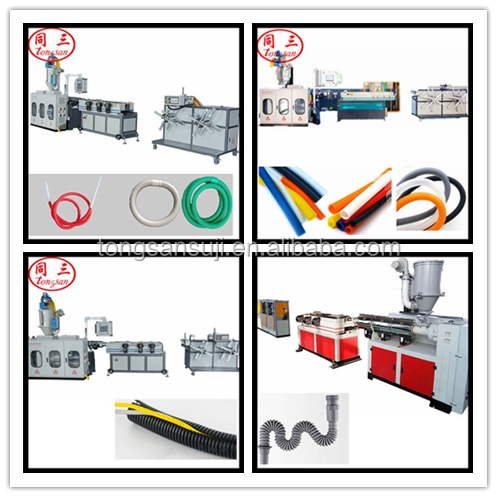

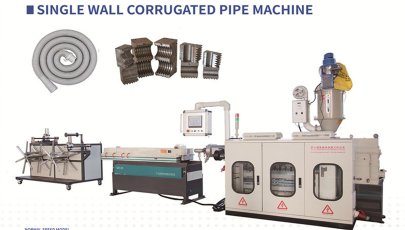

plastic single wall corrugated pipe machine

1. plastic single wall corrugated pipe machine can produce PP PE PA PVC EAV corrugated pipe which is widely used as wire harness protective pipe for car and machine tool

2. equip with vacuum pump, the machine can produce washing machine pipe, air conditioner pipe, hookah pipe, wash basin drain pipe,medical pipe

3.mold transmission by gear

4. water cooling, wind cooling

Details Images

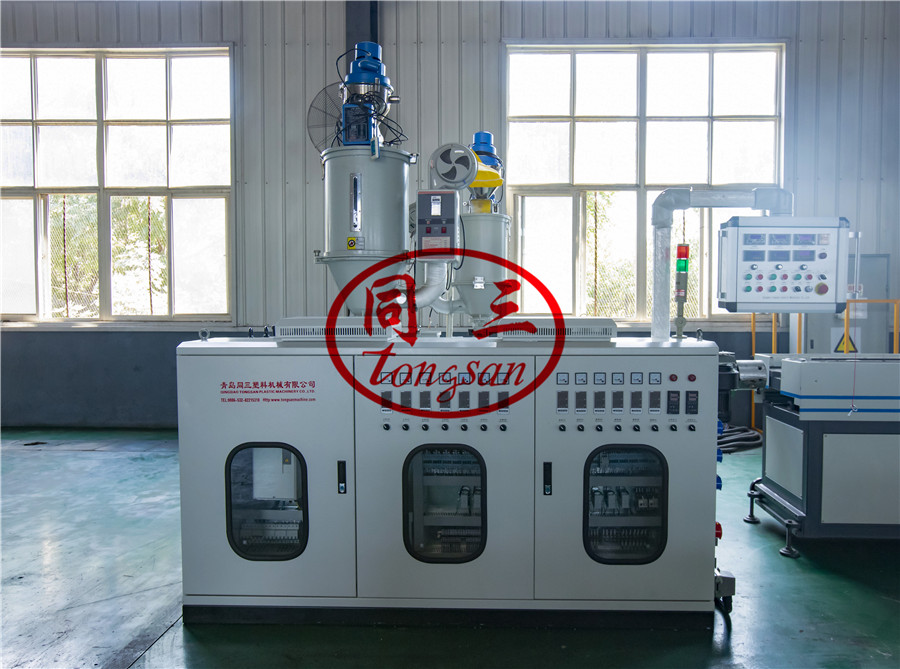

single screw extruder.

1. product material: PP PE PA EVA PVC garanule

2. extruder model: SJ45 SJ50 SJ65 SJ75 SJ90

3. motor power: 11-55kw

4. motor brand: SIEMENS

5. inverter brand: ABB

6. temperature controller brand: OMRON

7. heater material: cast aluminum

8. vacuum loading device: included

9. hopper dryer: include

double screw extruder

1. product material: PVC powder
2. extruder model: SJSZ51/105 SJMS65/132

3. motor power: 22kw 37kw
4. motor brand: SIEMENS
5. inverter brand: ABB
6. temperature controller brand: OMRON
7. heater material: ceramic
8. material loading device: included

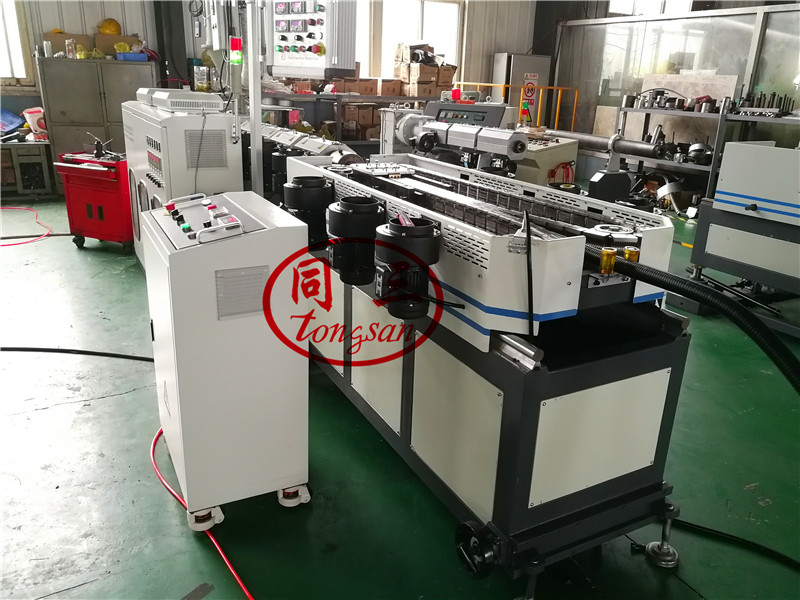

forming machine

1. forming type: blowing

2. cooling type: water and wind

3. fan quantity: 4 sets or 6 sets or 8 sets

4.lubricant: oil

5. transmission: gear

6. application: wire harness protective pipe for car or machine tool

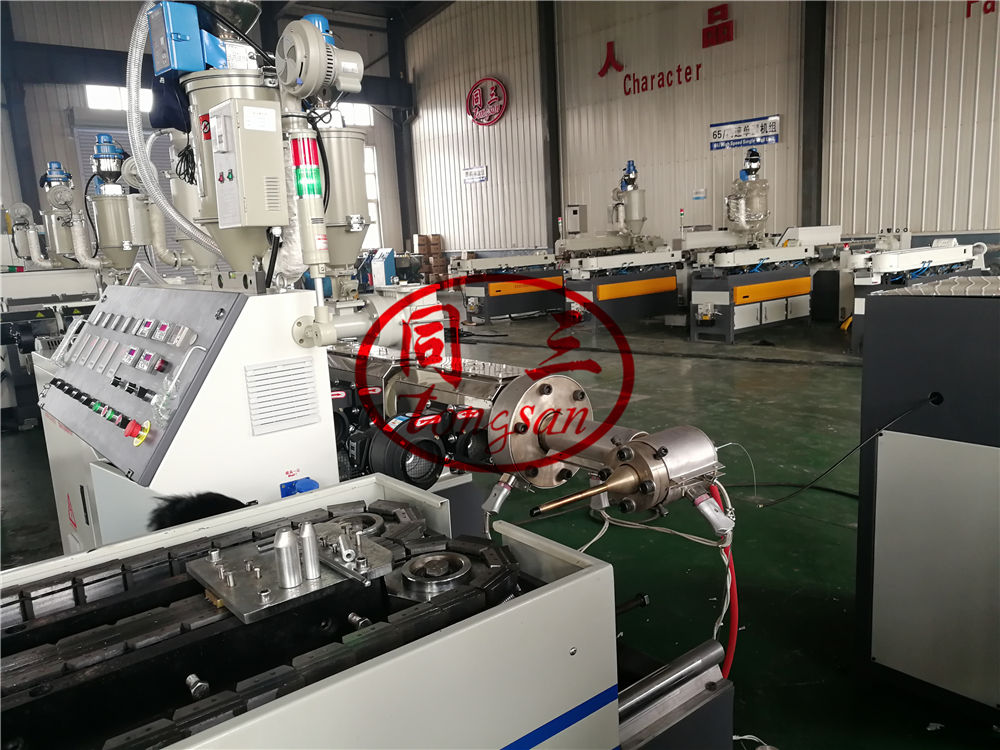

vacuum forming machine

1. forming type: vacuum

2. cooling type: water and wind
3. fan quantity: 4 sets or 6 sets or 8 sets

4. lubricant: oil
5. transmission: gear
6. application: washing machine pipe, wash basin pipe, air conditioner pipe, hookah pipe, medical pipe

20-30m/min high speed forming machine

1. speed: 20-30m/min

2. forming type: blowing

3. vacuum optional

4. cooling type: water
5. lubricant: oil by automatally
6. transmission: gear

7. mold cavity: single or double

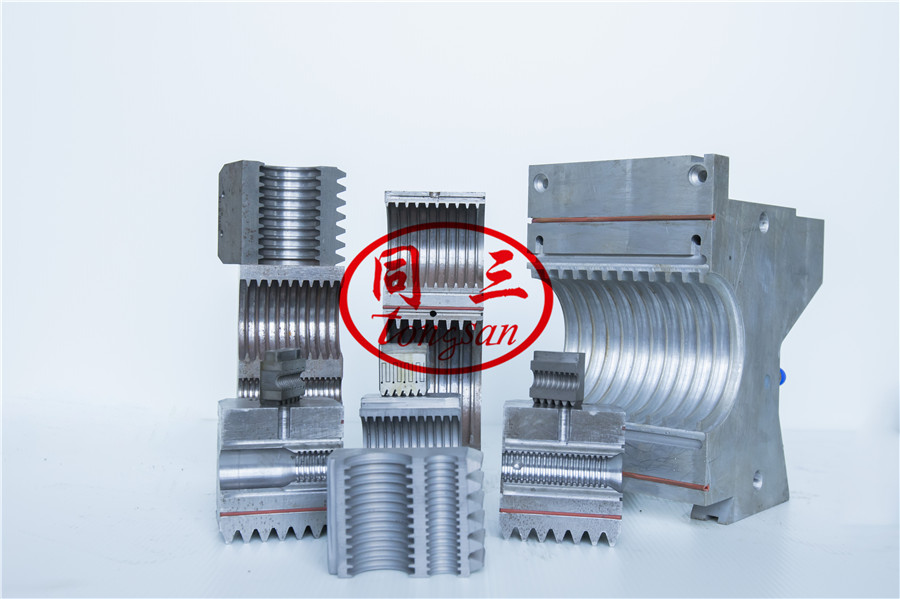

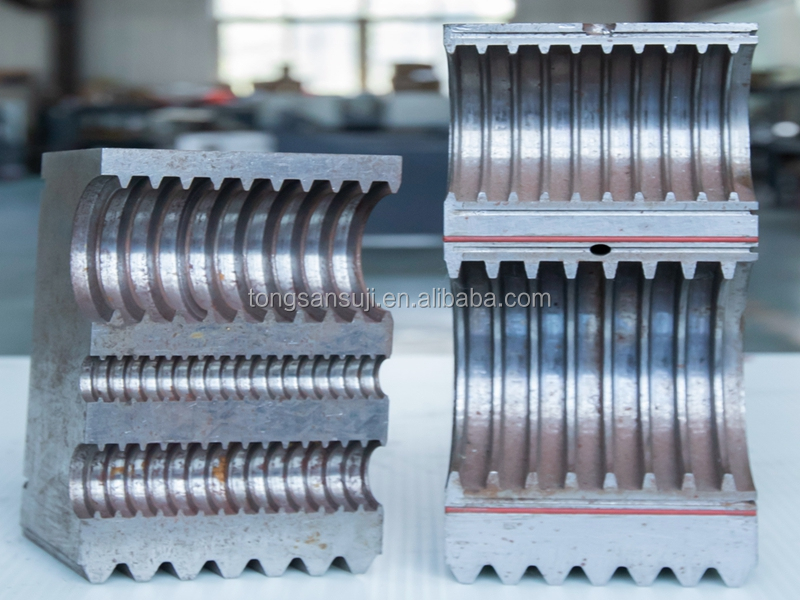

corrugated pipe mold

1. mould quantity: 52 or 72 pairs or customerized

2. cavity: single/double/three cacity or customerized
3. mould making: our own Germany CNC machine

4. mould material: 40Cr

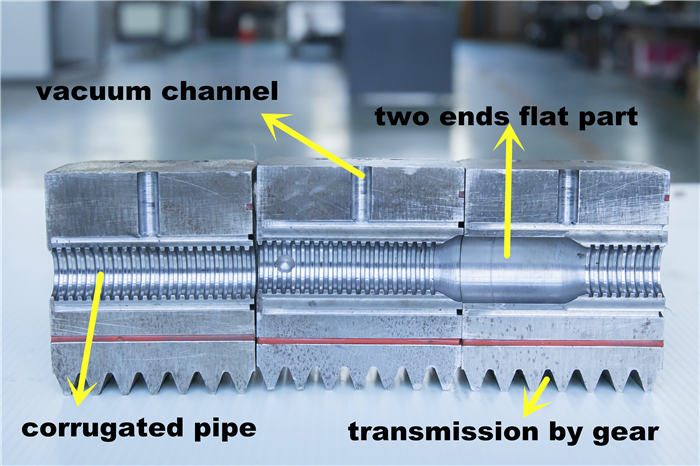

vacuum corrugated pipe mould

there shall be have vacuum mold optional according to product shape such as shisha pipe, air conditioner pipe....

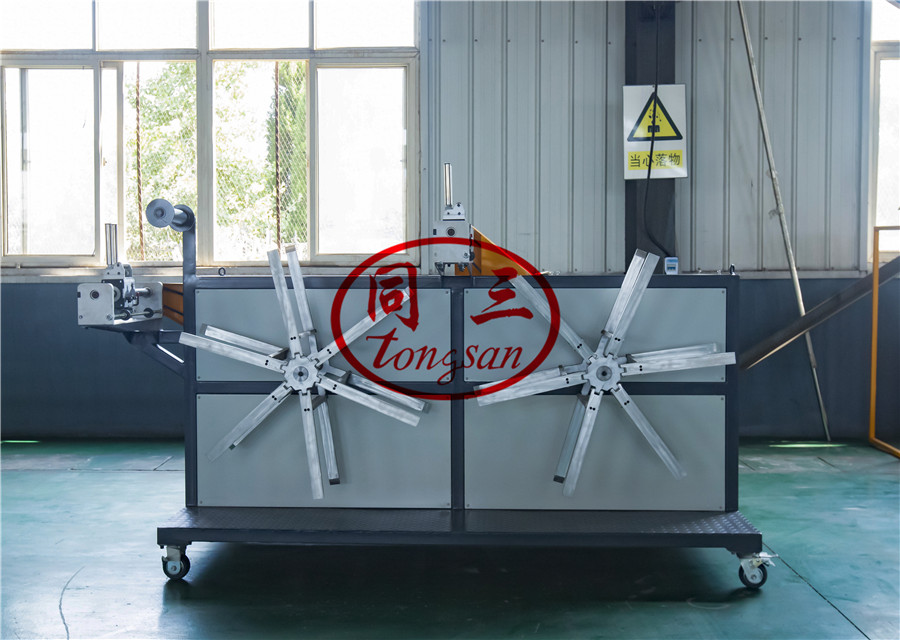

double working position winder

winding station: double station
winding method: automatic winding 50m/roll,100m/roll

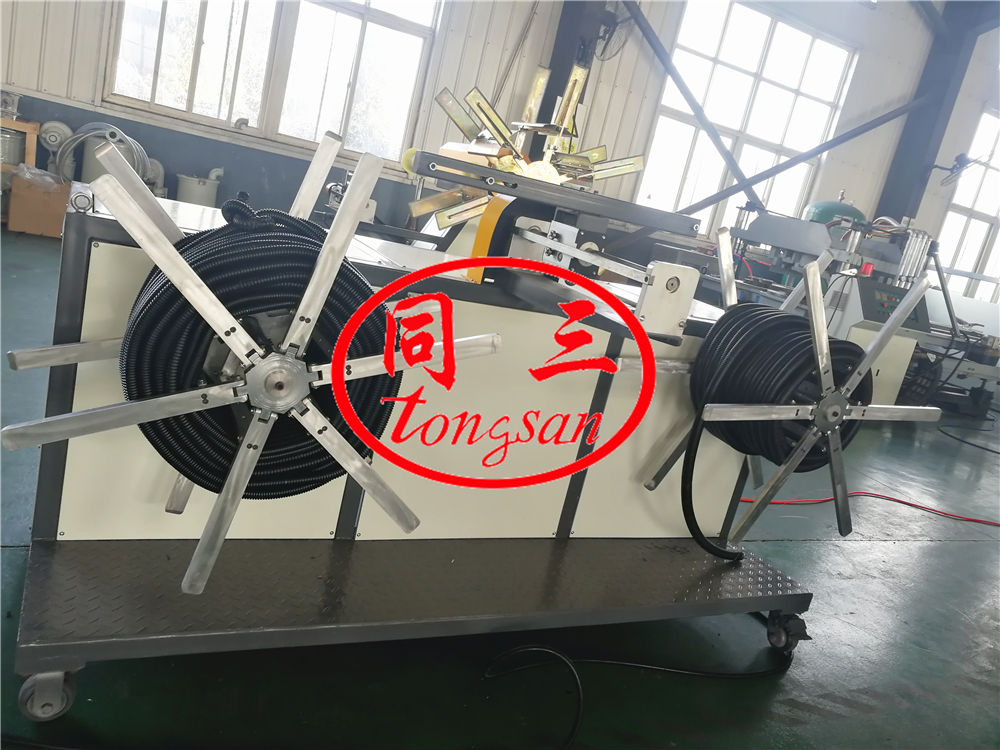

double working position winding machine

meter counting: automatic counting
winding meters: customized

steel wire feeding device is optional

entrance steel wire to pipe inside
