Turnkey project for package box making machine

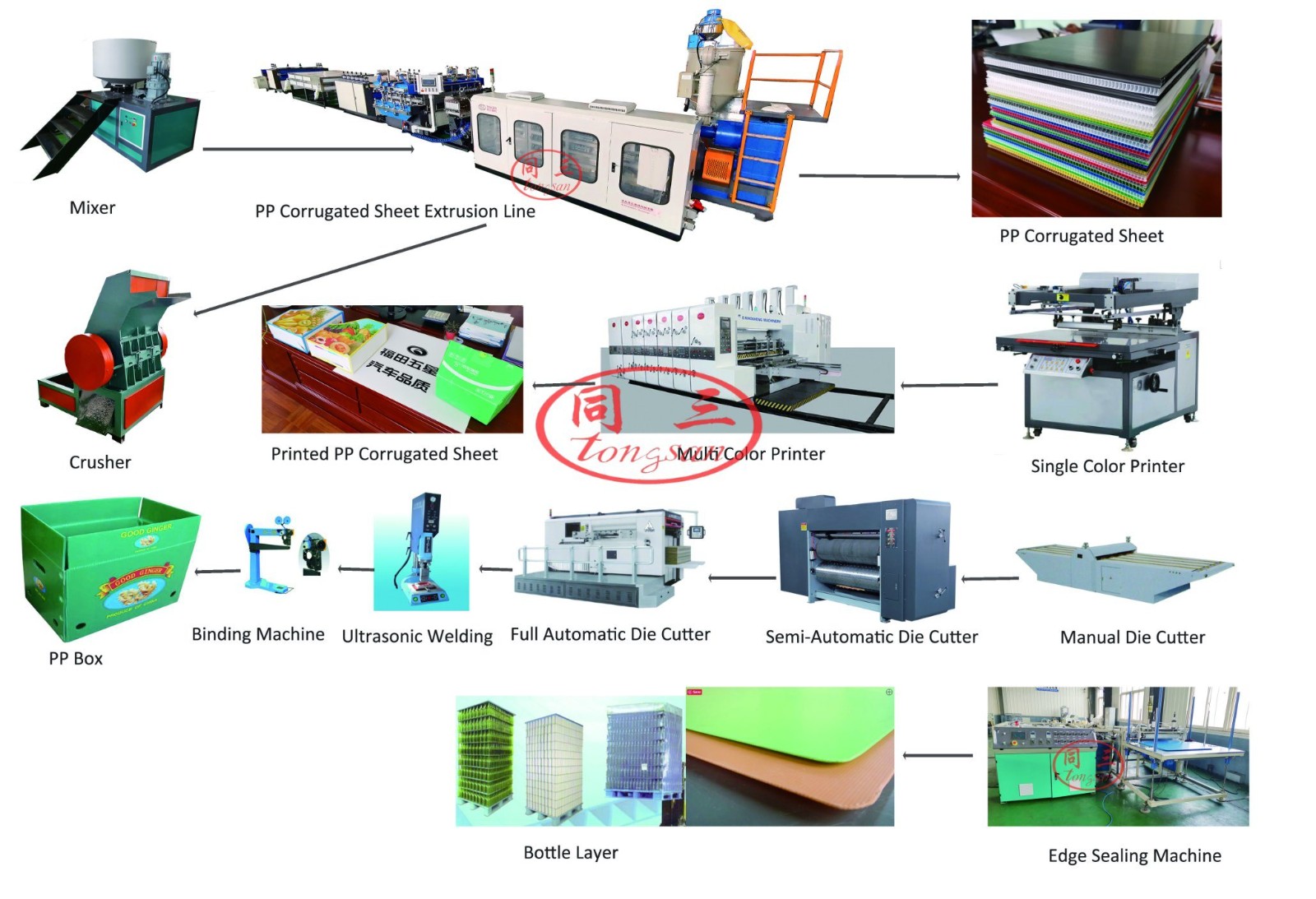

By using Tongsan PP PE Hollow Profile Sheet Corrugated Sheet Extrusion Machine,it greatly save your material cost and production cost.We provide high out production line with professional technology support,and auxiliary machine for package box making machines,such as printing machine,automatic die cutting machine,cartonplast box making machine,welding machine and edge sealing machine.
Different model Tongsan PP hollow corrugated sheet making machines
| Model | Sheet width | Sheet thickness | Extruder model | Output capacity |
| TS-1400 | 1220mm | 2-6mm 7-12mm | SJ100/36 | 200-300kg/h |
| TS-1860 | 1700mm | 2-6mm 7-12mm | SJ120/36 | 280-450kg/h |
| TS-2300 | 2100mm | 2-6mm 7-12mm | SJ120/36 | 350-550kg/h |
| TS-2600 | 2450mm | 2-6mm 7-12mm | SJ120/36 | 400-600kg/h |
| TS-2800 | 2600mm | 2-6mm 7-12mm | SJ150/36 | 450-650kg/h |
| TS-3000 | 2800mm | 2-6mm 7-12mm | SJ150/36 | 500-700kg/h |
| TS-1400 co-extrusion | 122mm | 2-6mm 7-12mm | SJ100/36+SJ65 | 200-300kg/h |
| TS-1860 co-extrusion | 1700mm | 2-6mm 7-12mm | SJ120/36+SJ65 | 280-450kg/h |
| TS-2300 co-extrusion | 2100mm | 2-6mm 7-12mm | SJ20/36+SJ80 | 350-550kg/h |
| TS-2600 co-extrusion | 2450mm | 2-6mm 7-12mm | SJ120/36+S80 | 400-600kg/h |
| TS-2800 co-extrusion | 2600mm | 2-6mm 7-12mm | SJ150/36+SJ80 | 450-650kg/h |
| TS-3000 co-extrusion | 2800mm | 2-6mm 7-12mm | SJ150/36+SJ80 | 500-700kg/h |
Details PP hollow corrugated sheet making machine
(1)Extruder for PP hollow sheet machine: high quality single screw extruder with high effective, special designed screw can help the PP material melted good in the extruder, and we can put recycled PP and 60% pp filler masterbatch for making low cost PP hollow sheet. the extruder is equipped with auto feeding system, auto temperature control system and low consumption driving system.
(2)Mould for pp hollow sheet machine:
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
(3)Screen changer for pp hollow sheet machine : Quick screen changer of hydraulic system ensures the short course of screen changing. Double-position combined with special sealing structure guarantee stable operation of screen changer.
(4)Vacuum calibrating table for PP hollow sheet machine:
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
(5)Tractor for PP hollow sheet machine:
There are two tractors. The first one is high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
(6)Stress remover corona treatment device for PP hollow sheet machine:
The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.
(7)Auto Cutting machine for PP hollow sheet machine:
Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.
