SJSBWG series double - wall corrugated pipe production line can continuously produce 32mm--160mm HDPE, PP double - wall corrugated pipe. The main extruder adopts high-efficiency screw, the die head adopts double-layer spiral structure, mouth die and core die being nitrided ,The forming machine adopts vacuum forming type,equipped with automatic lubrication system.Forming mould is made of SC-45.The pipe can be cutting by cutting machine automatically in fixed length


Description

Technical details for the double wall DWC corrugated pipe machine:

Model

SBG110

SBG300

Pipe diameter (mm)

DN/ID 32-110

DN/ID 110-300

Die head,mould

32-110mm

110-300mm

Forming machine model

SBGC-110

SBGC-300

Spray cooling tank

SGL-110

SGL-300

Non-dust cutting machine

SGQ-110

SGQ-300

Stacker

SGD-250

SGD-500

Production capacity(kg/h)

PE:160

PE:230

Mold quantity(pair)

72

48

Product speed

3-6m/min

2-5m/min



Detailed Images

Equipment list and machine details for 40-110mm DWC pipe machine

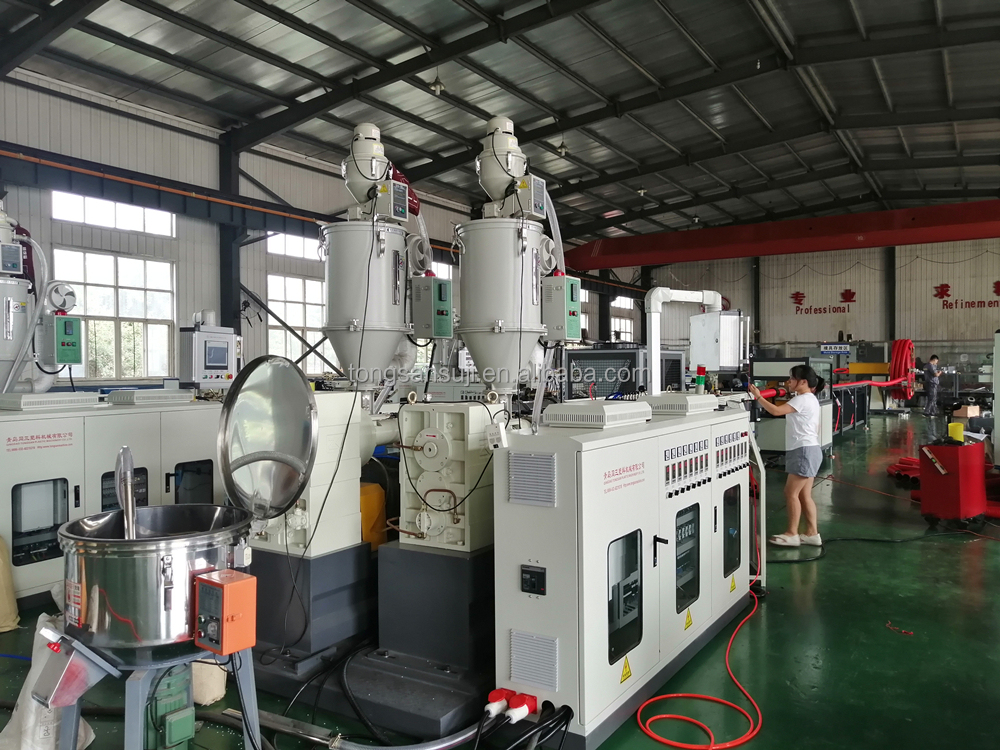

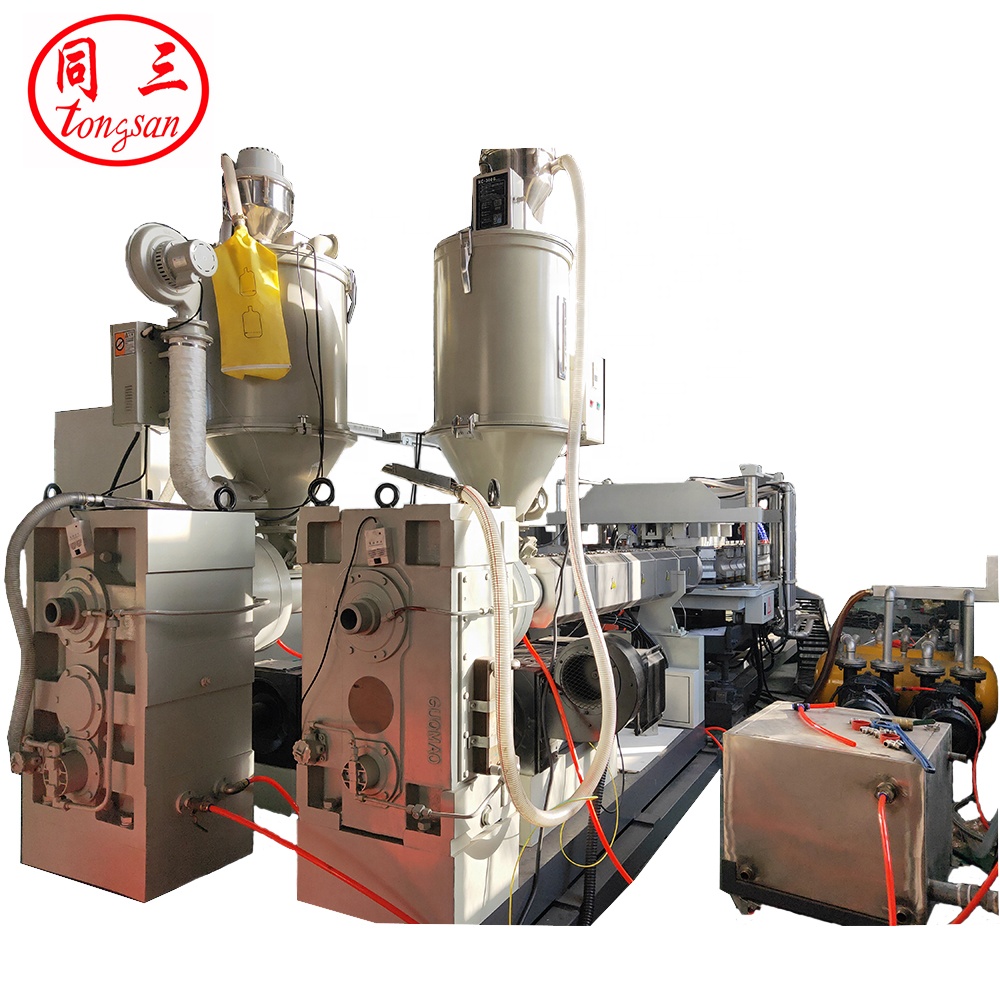

Single screw extruder SJ65/30

Single screw extruder SJ50/30

Double wall corrugated die head

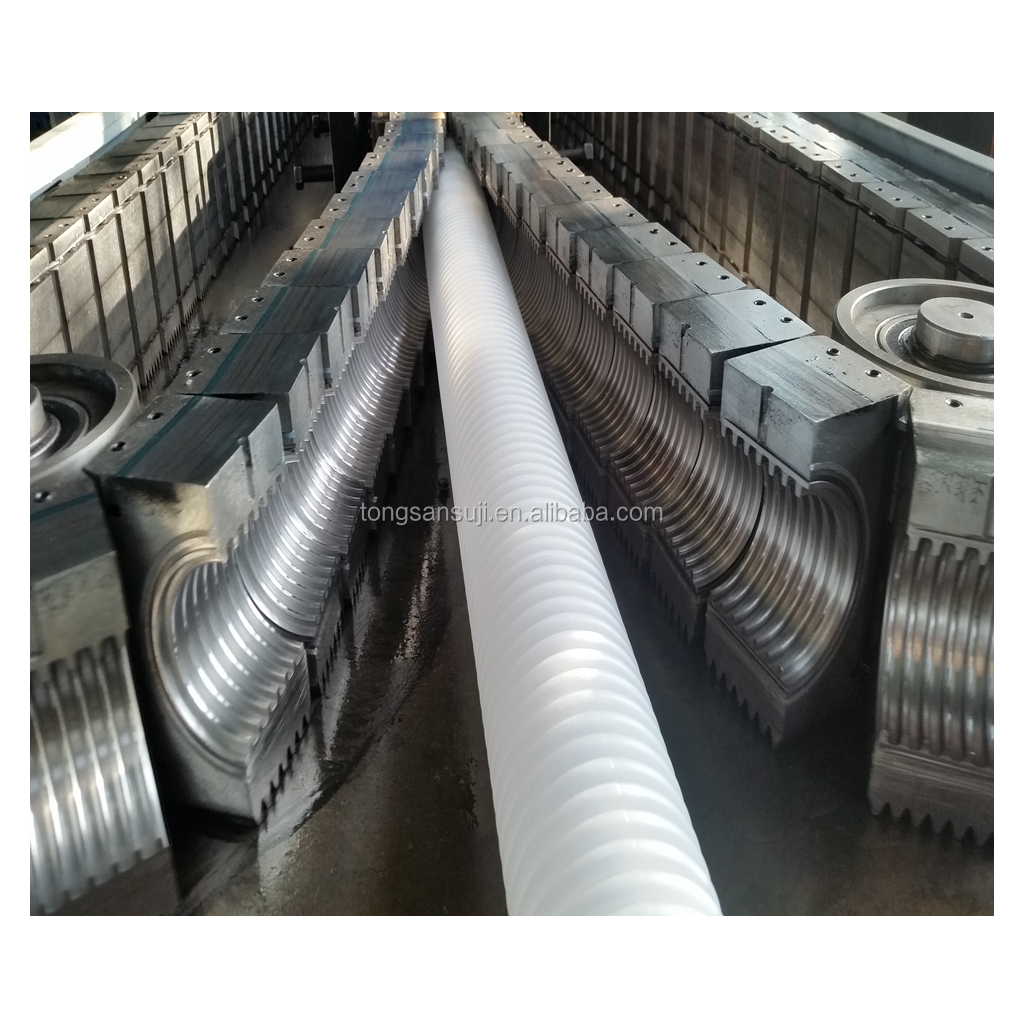

45# Steel mold: 72 pairs

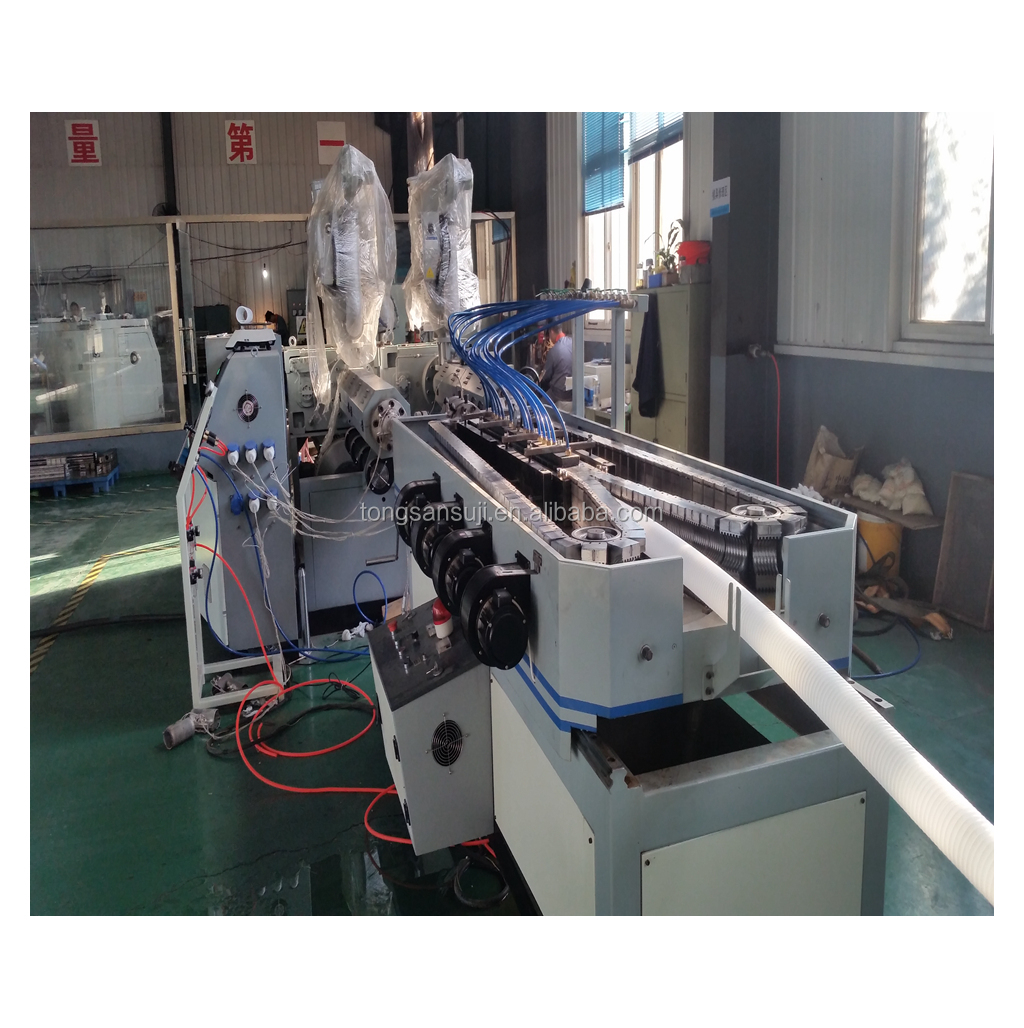

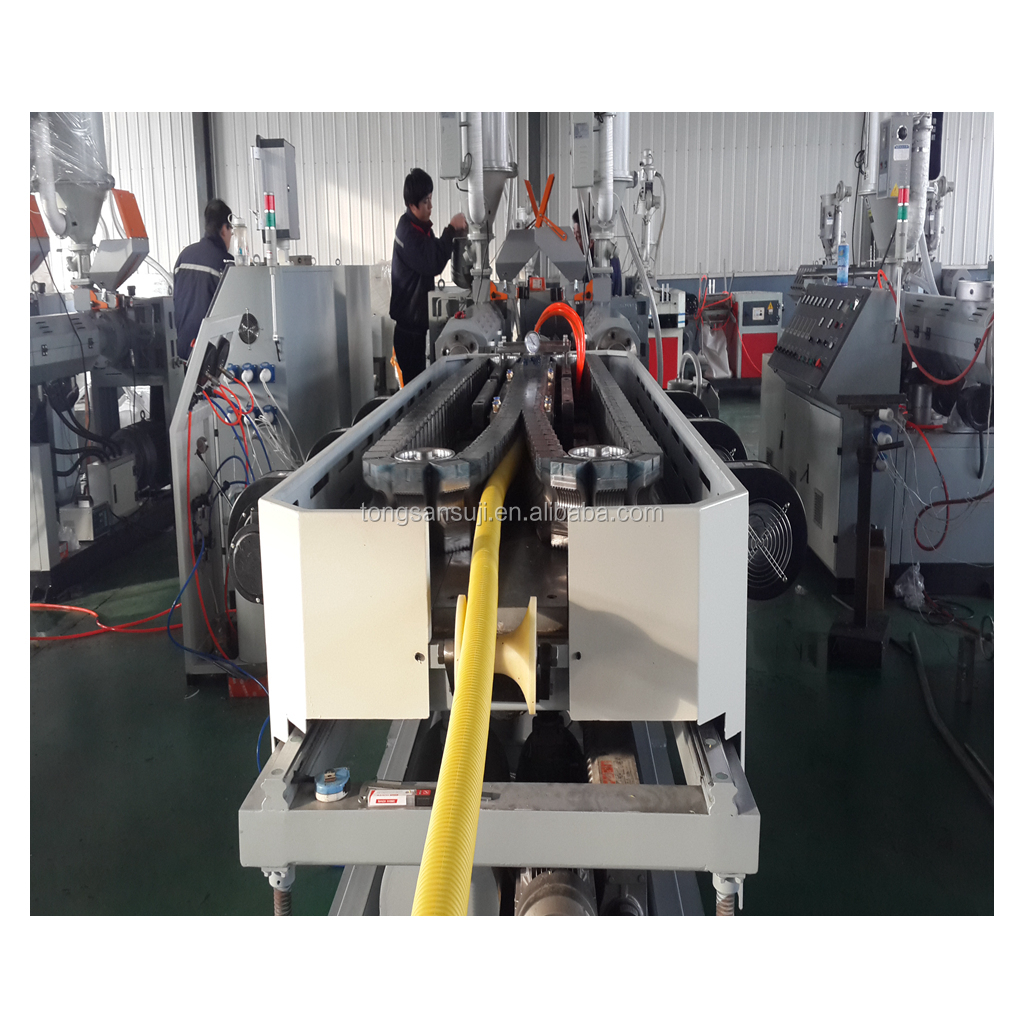

40-110mm Vacuum forming machine

forming machine with air cooling

Pull off machine

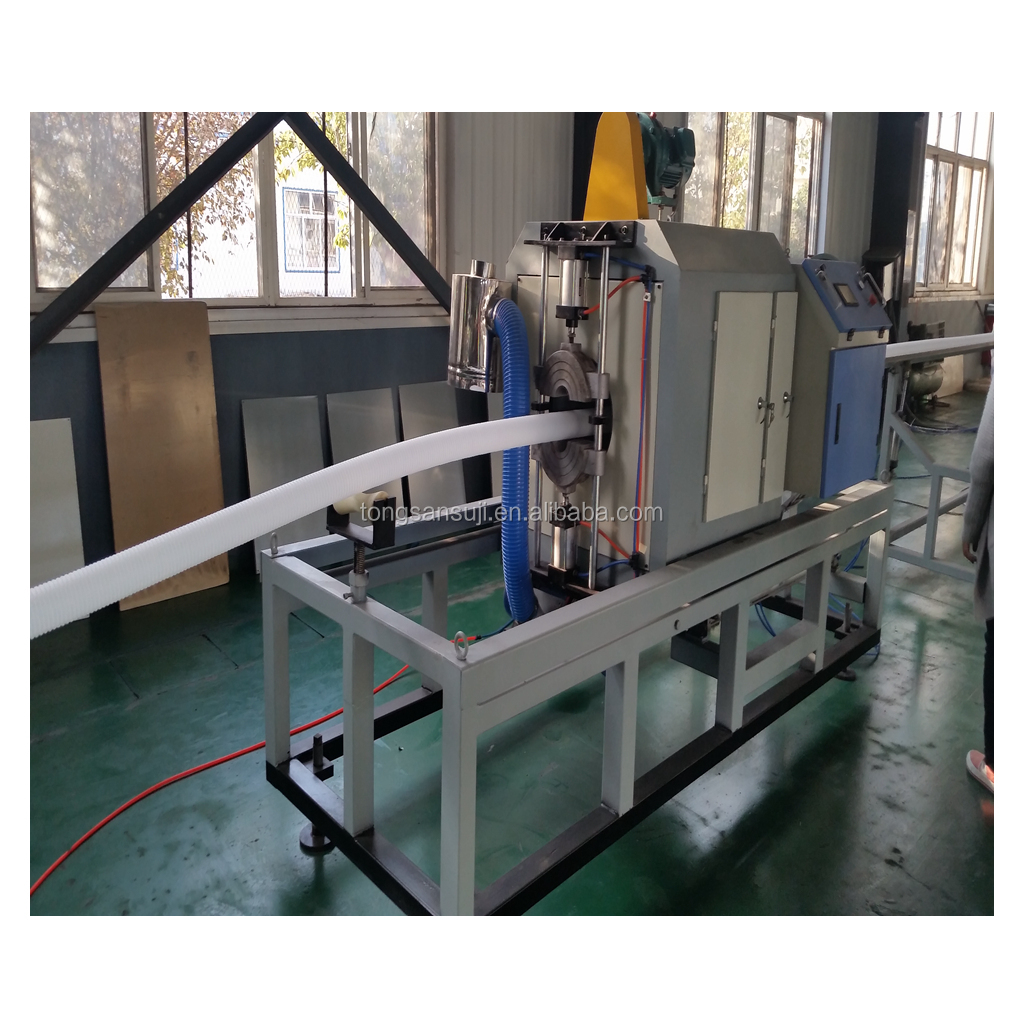

Auto cutting machine
