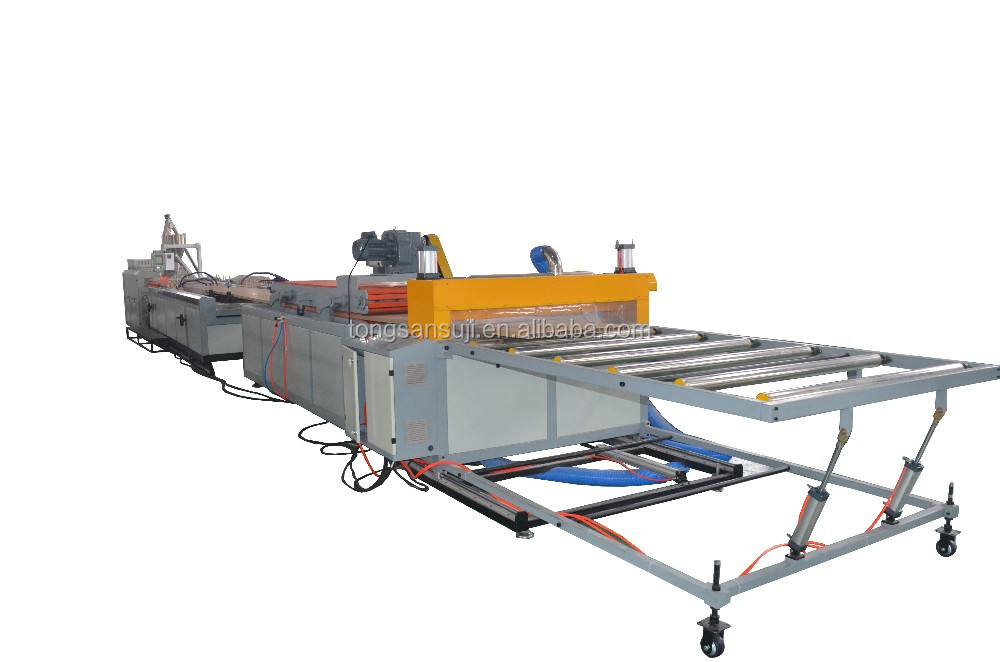

WPC door making machine turnkey production line with auxiliary equipments
Our company is professional for the WPC PVC door making machine turnkey project, we have rich experience for installing this project in different countries. we could provide you complete feasibility report for reference.
Description about WPC product
Wood-plastic products are a new type of green environmental protection sight material made from plastics and cellulose(straw,wood powder and rice chaff)by means of special treatment and processingMore durable,stable,hard density then wood fiber.It enjoys such advantages as follows:
1,Environmental friendly,100% recyclable,non-pollution,no toxic chemicals.
2,Recoverable,recycle,classical environment protection materials.
3,Against UV,weather resistance,flexible and strong arcing curves.
4,Corrosion resistance,moisture resistance and resistant to hot.
5,Colorful,easy to clean and maintenance.
The production line with the following feathers:
1) This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber, and the material is of 90% of waste plastic and waste natural fiber
2) With scientific and reasonable technology, the machine has high efficiency and runs stably
3) The parallel twin screw extruder is used to mix the wood and plastic, and get good homogeneous melt
4) This is one step WPC extrusion technology, which saves energy
5) This production line can product wpc products of different specifications only to change mold.
6)Imported PLC automatic control

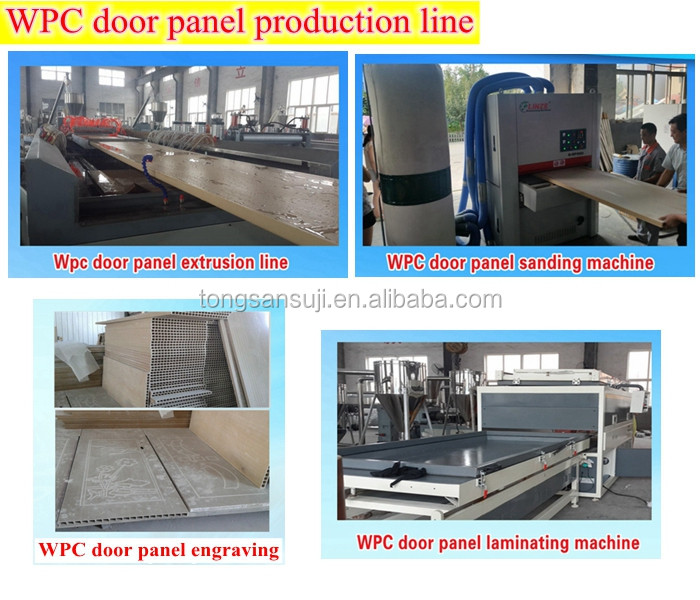

WPC door panel production line including following processing:
1, Material preparing: PVC Resin, wood powder, CaCo3, Chemical additives according to formula.
2, Mixing all the materials into uniform
3, Extrusion- mold- calibrating- haul off -cutting-stacking,you shall get the original WPC door panel
4, Sanding the surface of WPC door panel for two sides.
5, CNC engraving on the door panel to make 3D design, lock holes, hingle holes.
6, laminating on the WPC door panel surface.
WPC door frame production line including following processing:
1, Material preparing: PVC Resin, wood powder, CaCo3, Chemical additives according to formula.
2, Mixing all the materials into uniform
3, Extrusion- mold- calibrating- haul off -cutting-stacking,you shall get the original WPC profile for door frame,
you can change different mold to make different profiles on the same machine line
4, laminating the WPC door profiles
5, installation WPC door frame.
Detailed Images
Machine Parts

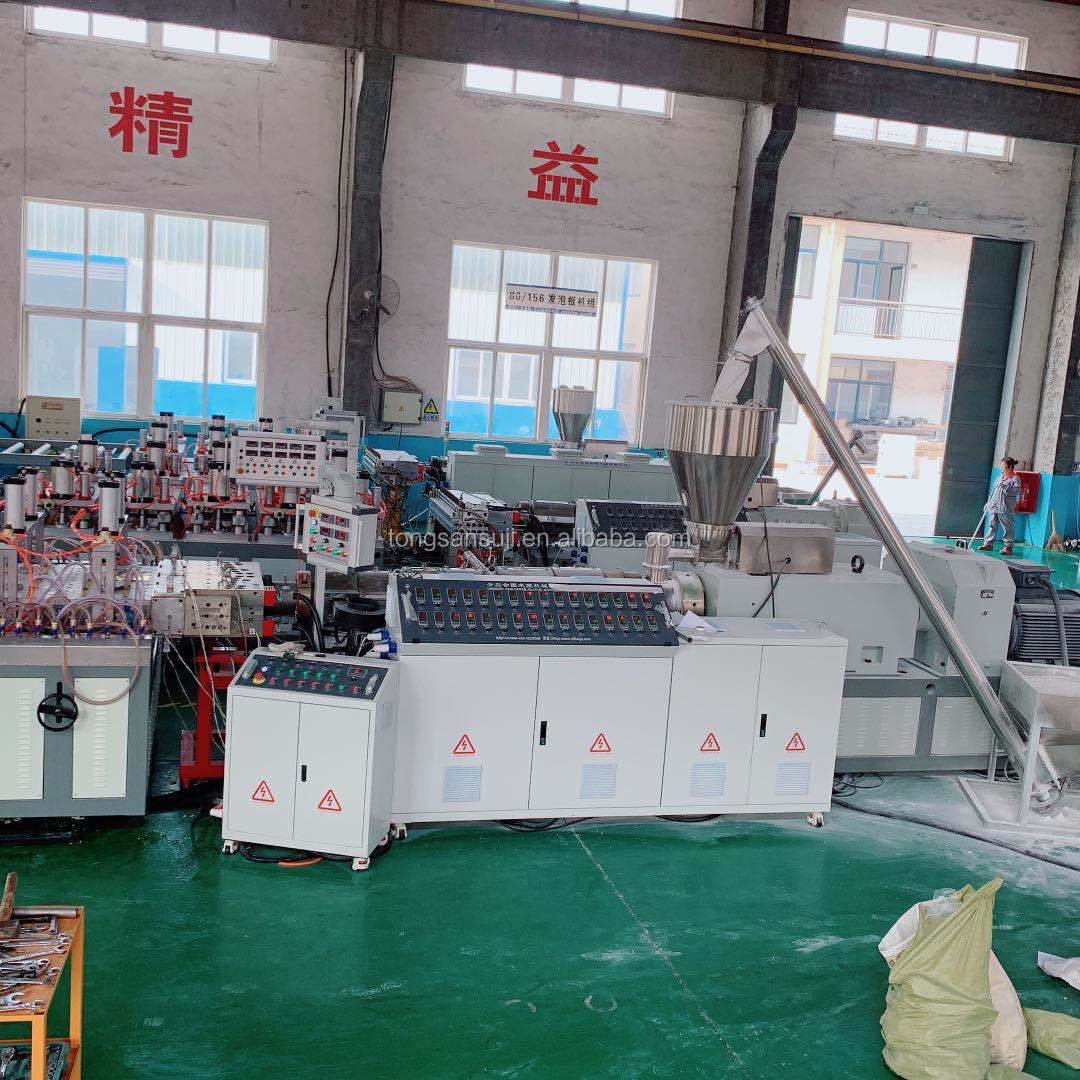

Extruder for the WPC door making machine
SJSZ80/156 Conical double screw extruder
Main motor: 75kw
With auto feeding device
Capacity: 300kg/h
vacuum pump: 5.5kw*1 set
Main Features

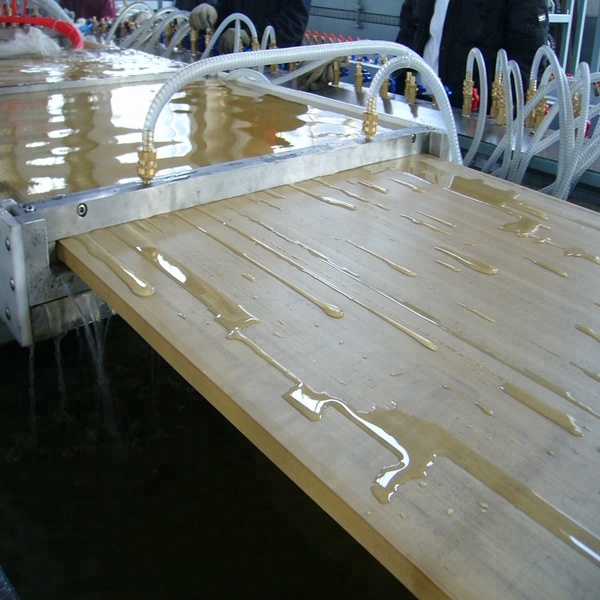

Calibrating machine for WPC door making machine
Cooling method: water cooling and vacuum cooling
length: 6 meters
water pump: 5.5kw*2 sets
Machine Parts
Haul off machine for WPC door making machine
Haul off by caterpillar
quantity of caterpillar: four pairs
material of cater pillar: rubber
haul off length: 3 meters
Main Features
Cutting device for WPC door making machine
Cutting by: circle moving saw
cutting length: adjustable
Description for PVC door panel extrusion machine and wpc door machine
1, Material of wpc door machine:
SJSZseries PVC wood plastic door machinery mainly use PVC+wood powder to extrude wood-plastic door panels.
2,extruder for wpc door machine:
Proper conical double screw extruder,specially used for wood plastic products,can be choosen in accordance with the panel section,application,product specific gravity.
3,downstreams for wpc door machine:
Also the corresponding auxiliary machines such as vacuum shaping platform,hauling machine,saw machine,material reversing platform,etc.are equipped.
4, Mold for wpc door machine:
Products of diversified specification can be produced with different dies.
