PVC WPC Skinning foaming board extrusion line for Interior decoration panels

Qindao Tongsan Hegu is professional for WPC extrusion machine.

We have WPC R&D and debugging team.

Customized machine according to customer's requirements.

Turnkey project service for whole WPC production line.

All series WPC machines in factory free testing anytime.

We help new customers succeed in WPC projects.

Thousands of production lines sold in more than 50 countries.

Choose WPC machine, choose professional manufacturer Tongsan .


Description

Product Description

PVC WPC Skinning foaming board extrusion line for Interior decoration sheet and building exterior wall panels

WPC solid door board making machine for 30-45mm thickness e is used for making 30-45mm solid WPC foam board for door panel, it uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall....


Model

SJMS80/173,SJMS92/188

Product width

1220mm

Product thickness

5-45mm

Capacity

350-450kg/h

Raw material

PVC and wood powder

Motor power

90kw/110KW

Inverter

ABB or Telda brand

Gearbox

Guomao

Screw material

38CrMoAIA+ Bimetallic

Detailed Images

PVC/WPC board machine can continuously produce PVC WPC foam board.This production line is composed of extruder, mould, calibrating platform, cooling frame, haul off machine, cutting machine and stacker.
The customer can also produce A+B+A three layers co-extrusion foam board by adding extruder and distributor .The machine should equip with water chiller, can increase production efficiency.

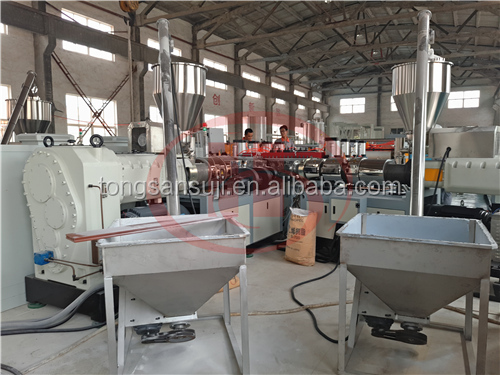

Auto feeder

Automatic feeding device made by stainless steel, adopting spiral screw feeding, with double screw feeding hopper.

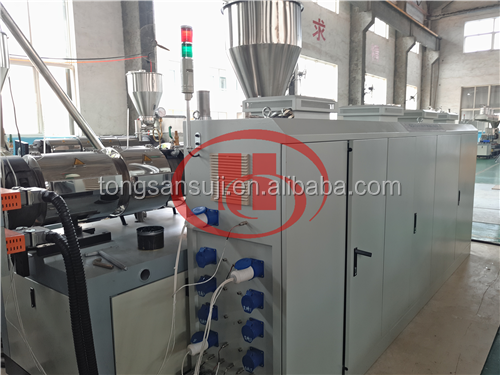

Extruder

Conical double screw extruder with special designed Screw and Barrel, the screw and barrel must be designed for high foaming
technology with one foaming zone

Electric control system

ABB inverter

Omron temperature control

Siemens PLC  control

Siemens contractor

Siemens motor

Die head

WPC foam board die head is made by special high quality mold material with good resistance for WPC material, the die head width is 1450mm which can make 1220mm width product

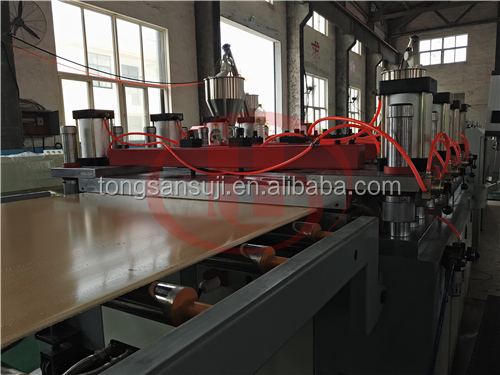

Calibrator

adopting water cooling inside the calibrators, the products shall be cooled by the calibrators without touching water, the calibrators are designed for celluca foaming technology to make inner foamed and skinned surface WPC foam board

Cooling bracket stacker

WPC foam board cooling bracket is designed for air natural cooling after calibrating, it can make the WPC foam board with uniform
surface without bending, 5 meters cooling bracket is necessary

Haul off machine

WPC foam board haul off machine is designed with strong haul off force, it is necessary to use 8 pairs or 10 pairs of high quality rubber rollers which is drived by gear connection .


Edge cutting machine

WPC foam board edge cutting machine is used for cutting the edges of WPC foam board to ensure the uniform cutting edge, the cutting waste can be recycled and reused



Length cutting machine

WPC foam board length cutting machine is used for cutting the length of WPC foam board, it adopts automatic cutting with length metering device.
