Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line
Plastic PVC Spiral Strengthened Soft Pipe Machine Production line

Plastic PVC Spiral Strengthened Soft Pipe Machine Production line

The machine can be used to make pvc spiral reinforced pipe. the total production line inclouding two extruders,forming device,water tank and winder. The pipe wall presure is reinforced by spiraling soft pvc and hard pvc. This kind of pipe has features of compression resistance,resisting strong corrosion and possitive or negative pressure,bent-resistant, good liquidity,etc,it is suitable for carrying the gas,liquid,power and granules. The pipe is widely used in industy,agriculture,construction and water conservancy irrigation,etc.

Description

Single screw PVC extruder PVC fiber reinforced garden hose extrusion machine

Item

Parameter

Pipe Size

8-40mm

Speed

0-16m/min

Raw material

Soft PVC granules and yarn

Output

60-120kg/h

Total Installed Power (KVA)

60, 380 V three phases, 50HZ

Load factor

50-80%

Overall dimension

11000*3.2*2

Cooling water

1m3/h circularly used

The PVC fiber reinforced pipe can be called PVC net pipe or plastic plica pipe. The pipe is suitable for carrying high pressure or mordant gas and liquaid, it is widely used in machinery, colliery,oil industry, chemical, agricultural irrigation, construction,home application. Now it is also widely used in garden irrigation.


Equipment List and Quantity

for complete production line for making PVC fiber reinforced garden hose

Equipments

Quantity(set)

Single screw extruder: SJ65/28

2

Die head

customized

Cooling bath

2

braider

1

Single screw extruder SJ30

1

Drying tank

1

Haul-off unit

2

Winder

1

Electrical cabinet

1

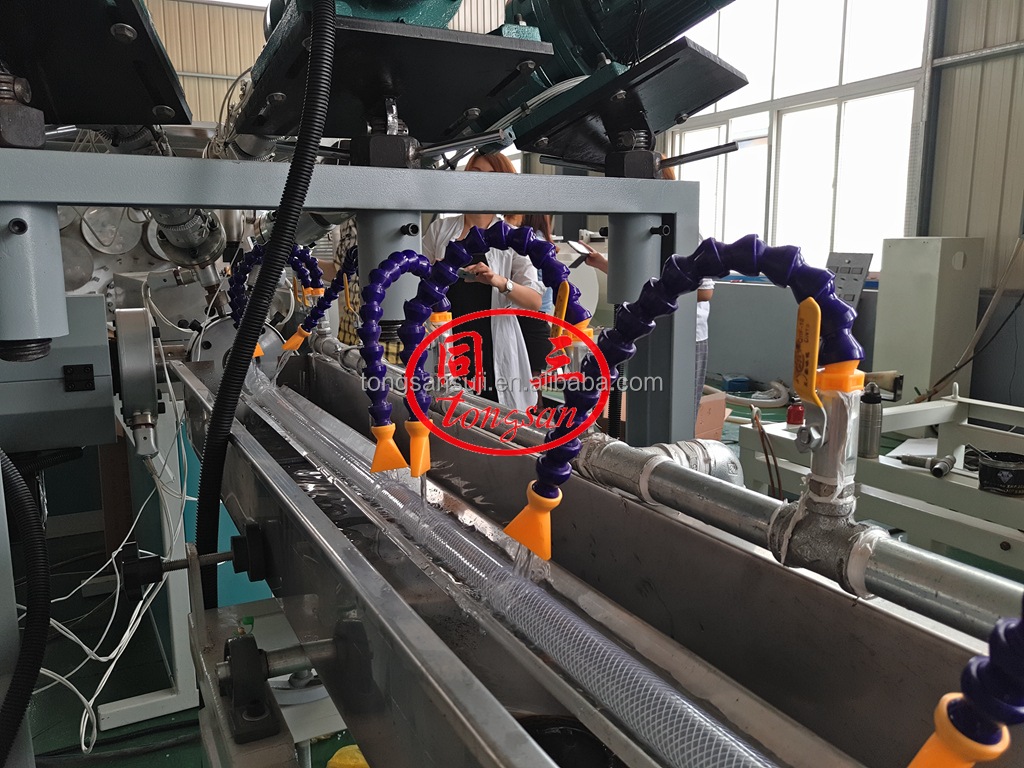

Detailed images
