Qingdao Tongsan Plastic Machinery co.,ltd /Qingdao Hegu Wood Plastic Machinery co.,ltd.are professional manufacturer for Plastic Extrusion Machine with 25 year experience, We are professional for Turnkey plastic production plant.
Our Main Products are:

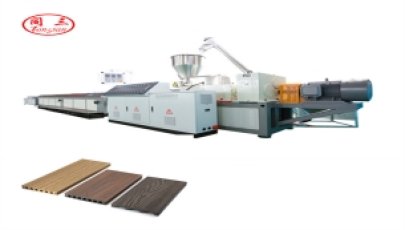

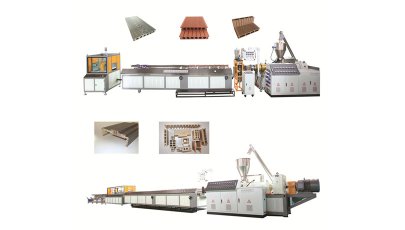

1, Wood Plastic WPC Decking Profile machine
2, WPC Door Making Machine
3, WPC Board Making Machine
4, Plastic Corrugated pipe machine
5, PP hollow sheet making machine
6, plastic sheet extrusion machine
7, PE PVC PPR pipe extrusion machine
If you have any interest about our machine, please kindly feel free to contact us.

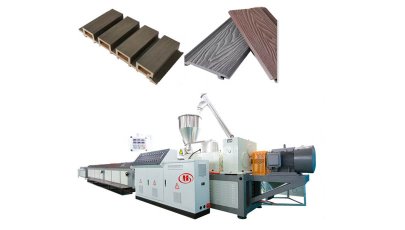

1, PVC WPC door frame profile machine:
Material: 50%PVC+20% wood+20% caco3+ Chemical additives.
Product: WPC door frame, WPC wall panel, WPC decoration profiles indoor.
Model | Profile Width | Extruder model | Motor power | Max.extrusion capacity | Calibrating platform length |
HGMSC-200 | 200mm | 51/105 | 22kw | 100-120kg/h | 4000mm |
HGMSC-300 | 300mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
HGMSC-400 | 400mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
HGMSCD-300 | 600mm | 65/132 | 37kw | 150-180kg/h | 8000mm |
HGMSC-600 | 600mm | 65/13 or 80/156 | 37 or 75kw | 150-350kg/h | 6000mm |
2,PVC WPC door panel machine:
Material:50% PVC+20% wood+20% caco3 +Chemical additives.
Product: Hollow Door panel, Cabinet Door, and other big profiles
Model | Door panel width | Door panel thickness | Extruder model | Motor power | Max extrusion capacity | Calibrating mould section |
HGMSM-800 | 800 | 20-50mm | SJMS 80/156 | 75kw | 350-380kg/h | 2 |
HGMSM-1000 | 1000 | 20-50mm | SJMS 92/188 | 110kw | 450-500kg/h | 3 |
HGMSM-1200 | 1200 | 20-50mm | SJMS 92/188 | 110kw | 450-500kg/h | 3 |
3, PVC WPC foam board machine:
Material: 60% PVC+10% wood +20% CaCo3+ Chemical additives.
Product: Solid door panel, Furniture board, partition wall panel, decoration solid panel
Model | SJMSB-80/156 | SJMSB-80/173 | SJMSB-92/188 |
Board thickness | 5-18mm | 3-30mm | 20-40mm |
Board width | 1220mm | 1220mm | 1220mm |
Max extrusion capacity | 350-380kg/h | 420-450kg/h | 500-550kg/h |
Motor power | 75kw | 90kw | 110kw |
